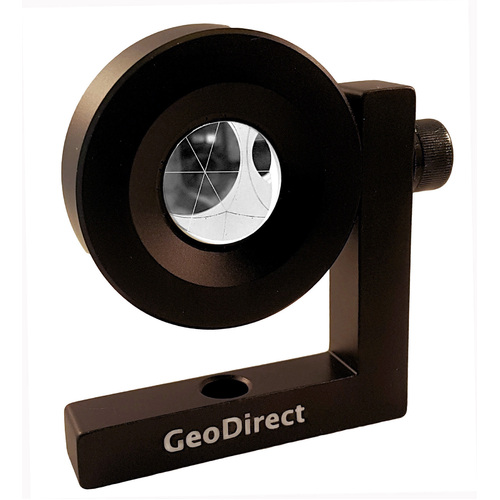

Hermetically sealed monitoring prism.

Anodised aluminium assembly.

Prism Ø 25mm, Outer housing Ø 60mm, L-Bar 75x75mm, Mounting hole Ø 10mm, Weight 220 grams.

Distance range up to 1,200m (depending on atmospheric conditions).

***For Trimble users, issues can occur if copper-coated prisms with anti-reflection coating are used with SX Series instruments.

While there is no issue with the copper coating, the anti-reflection coating on the front of the prism is optimised for Leica EDMs which use a wavelength at 0.85µm and 0.66µm, as opposed to the wavelength of the Trimble SX Series EDM, which is at 1.55µm, thus the front reflection is larger.

SKU GD-LBAR-SILVER
